29 July 2021

Non-detailed eQSL from World Music Radio

 Thanks to Stig Hartvig Nielsen for the eQSL for reception of WMR on 25800 kHz!

27 July 2021

eQSL from Radio Classic Sunday

 Thanks for the eQSL for reception of Radio Classic Sunday on 6185 kHz (via Radio Piepzender)!

25 July 2021

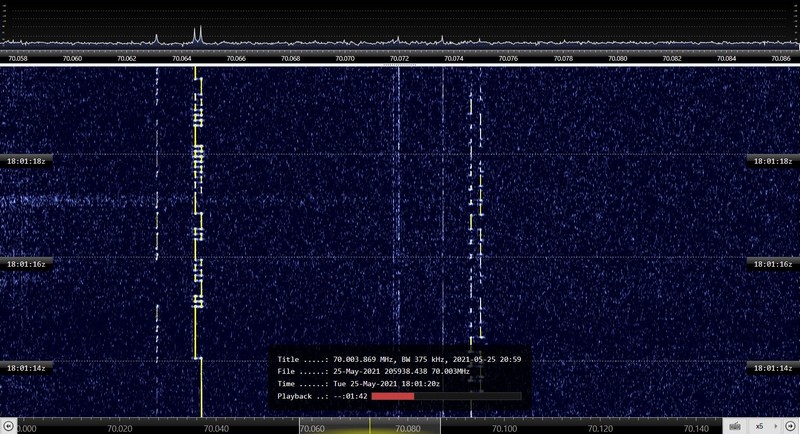

4 meter band ham radio beacons observations

25.05.2021 17.35 UTC   70018 kHz     OH2FOUR   30 W  KP20DH  43433   OOK-CW
25.05.2021 17.45 UTC   70021 kHz     OZ7IGY    25 W  JO55WM  43433   PI4/FSK-CW
25.05.2021 17.45 UTC   70097 kHz     9A1CMS/B  ?? W  JN86DM  35422   PI4/FSK-CW
25.05.2021 17.55 UTC   70063 kHz     LA2VHF/4  25 W  JP53EG  45444   OOK-CW
25.05.2021 17.55 UTC   70065 kHz     LA5VHF    15 W  JO38RB  55444   FSK-CW
25.05.2021 17.55 UTC   70075 kHz     LA4VHF    50 W  JO28WL  55444   FSK-CW
25.05.2021 17.55 UTC   70162 kHz     LX0FOUR   10 W  JN39AV  35422   FSK-CW


Propagation mode: Es
RX: Airspy Mini SDR
ANT: 80 mb dipole

23 July 2021

Pirate Radio Logs 02.07.2021 - 21.07.2021

02.07.2021

19.16 - 6290.0 - UNID - 45343 - Eddie Meduza - Hoppla Lilla Åsna, 19.22 - CD
19.44 - 4850.0 - Mike Radio - 45343 - Rod Stewart - Sailing, 19.46 - ID, 19.47 - Diesel - Sausalito Summernight, later - QSY to 4845 kHz
20.53 - 4870.0 - Mystery Radio 21 - 55344 - In Extremo - Erdbeermund, 20.54 - ID jingle, 20.55 - Kosheen - All In My Head
21.20 - 6930.0 - Radio Nova (tent.) - 25332-35333 - Some music on peaks, 21.23 - CD
21.27 - 4845.0 - Mike Radio - 45344 - Visage - Fade To Grey, 21.28 - ID, 21.29 - Brian Hyland - Itsy Bitsy Teenie Weenie Yellow Polka Dot Bikini, 21.31 - The Three Degrees - The Runner
21.35 - 6265.1 - EM Radio (tent.) - 153x1-25322 - Some weak music on peaks
21.50 - 6985.0 - The Vault - 45444 - Yello - Friday Smile, 21.52 - David Byrne - My Big Hands, 21.55 - Roxy Music - Dance Away, 22.02 - ID
22.30 - 5140.0 - Charleston Radio Int'l - 45343 - Eddie Condon's Hot Shots - I'm Gonna Stomp Mr. Henry Lee, 22.35 - Ted Lewis - Hello! Montreal

03.07.2021 (thanks to Henri for the help with ID of some of the stations)

16.27 - 88.8 MHz FM - Sirocco en Lawaai Papagaai - 42533 - Shocking Blue - Loving You, 16.32 - Bing Barlow - Oorlog 1914-1918, RDS PI: 884A, QRM from co-channel BBC Radio 2
16.28 - 91.6 MHz FM - M en M Formatie (tent.) - 35533 - Ricky Clair - Bij de Acropolis, 16.31 - Ad en Karin - In een DC 10, 16.32 - Some announcement by male voice, 16.33 - Lola - Het Was Lente In September
16.28 - 90.1 MHz FM - Zuidwester - 43533 - José - Wat Is Rijkdom? 16.32 - Erik Van Neygen - De Herinnering Blijft, 16.37 - Johnny Cash - Ring Of Fire, RDS PI: 8FFF, QRM from co-channel BBC Radio 2
16.35 - 92.1 MHz FM - De Baltazar en Lady - 33533 - Margriet - Ze Was Maar Een Junk, 16.38 - Fäaschtbänkler - Humpa Humpa, 16.41 - Anita & Ed - Viva L'amore, RDS PI: FFF6
16.40 - 87.5 MHz FM - Kampers Piraten Team (tent.) - 44522 - The Classics - Yellow Sun of Ecuador, RDS PI: BE35

04.07.2021

21.08 - 6268.0 - UNID - 54344 - Linda Welby - Crazy Love, 21.10 - Walter Ostanek - Friendship Polka, 21.13 - Aneka - Ooh Shooby Doo Doo Land
21.14 - 6295.0 - Reflections Europe - 45344 - Sermon in English
21.17 - 6985.0 - The Vault - 45444 - Jimmy Ray - Are You Jimmy Ray, 21.18 - Dhuo - Walkin', 22.01 - The Beatles - Michelle, 22.09 - ID
21.20 - 6955.0 - Radio Nova (Ireland) (tent.) - 34333 - Will To Power - Baby, I Love You Way, 21.22 - Sting - All This Time, 21.26 - Pointer Sisters - Jump For My Love, 21.31 - CD
21.37 - 5140.0 - Charleston Radio Int'l - 45243 - Retro music

05.07.2021

20.16 - 6285.0 - UNID - 44344 - Oompie Koerier - Dan Gaat de Hemel voor Jou, 20.21 - The Shadows - Riders In The Sky, 20.28 - The Alan Parsons Project - Eye In The Sky, 20.31 - CD
21.36 - 4870.0 - Mystery Radio 21 - 55444 - ID, 21.38 - Thyx - Doomed, 21.43 - Hootie & Blowfish - Only Wanna Be With You, 21.46 - Chris Ares - BRDigung
21.50 - 4975.0 - Radio Deltracks (tent.) - 44343 - The Quotations - Cool It, 22.06 - The Riot Squad - I Wanna Talk About My Baby, 22.33 - The Hollies - Devi Aver Fiducia In Me
22.45 - 5095U  - Cool AM Radio (tent.) - 152x1-25322 - Traces of music on peaks
23.18 - 5140.0 - Charleston Radio Int'l - 44344 - Adolph Deutsch & His Orchestra - Medley: Sugar Blues/Running Wild, 23.22 - Fred Elizalde - My Pet
23.24 - 6285.0 - Radio KR1 - 42332 - Some music, strong QRM from wideband OTHR signal

09.07.2021

19.40 - 6335.0 - Radio Monique - 44333 - Joan Jett & The Blackhearts - I Love Rock'n'Roll, 19.43 - greetings to me (thanks!)
19.50 - 6269.0 - UNID - 45344 - Edith Piaf - Non, Je Ne Regrette Rien, 19.52 - CD
20.58 - 6205.0 - Radio TRX - 55344 - Asleep At The Wheel - Bob Wills Is Still The Kings, 20.20 - Ralph Stanley - I'll Fly Away, 20.22 - George Strait - Right Or Wrong, 20.41 - ID
20.31 - 6280.0 - Radio KR1 (tent.) - 43343 - Scooter Lee - Ribbon Of Highway
20.55 - 6325.0 - Radio Batavia - 34333 - Matthias Reim - Verdammt Ich Lieb Dich, 20.57 - René Le Blanc - If I Tell You, 20.59 - First Aid Kit - My Silver Lining, later - QSY to 6322 kHz
21.04 - 6290.0 - Radio Pioneer (tent.) - 33333 - Some music
21.37 - 6322.0 - Radio Batavia - 35343 - Buck Owens - Made In Japan, 21.39 - James Last - Orange Blossom Special
22.50 - 4870.0 - Mystery Radio 21 - 55344 - Deine Lakaien - Because The Night, 22.52 - Zimmer - Eyja
22.54 - 6985.0 - The Vault - 45344 - Ramones - Baby, I Love You, 22.58 - Rodriguez - I'll Slip Away, 23.01 - ID, 23.02 - The The - Slow Train To Dawn

10.07.2021

19.03 - 6272.0 - UNID - 45444 - The Snake Oil Willie Band - I Don't Look Good Naked Anymore, 19.04 - Toby Kieth - How Do You Like Me Now?! 19.17 - Tante Leen - Ik Kan Vergeven, 19.31 - CD
19.23 - 6280.0 - Radio KR1 - 34433 - Alan Jackson - Little Bitty, then - QSY to 6285 and back to 6280
20.28 - 6929.8 - Radio Nova (tent.) - 34422 - The Rolling Stones - Honky Tonk Woman, 20.30 - Mental As Anything - Live It Up
21.05 - 6180.0 - Technical Man - 44444 - REO Speedwagon - Keep On Loving You, 21.06 - The Pasadenas - Riding On A Train, 21.34 - The Stranglers - Always The Sun, 21.36 - CD
21.38 - 6280.0 - Offshore Music Radio - 54444-55545 - Gladys Knight & The Pips - I Heard It Through The Grapevine, 21.40 - Kelly Garrett - Love's The Only Answer, 21.42 - Gary Lewis & The Playboys - This Diamond Ring
22.00 - 6985.0 - The Vault - 44433-45444 - Bryan Ferry - Slave To Love, 22.04 - ID, 22.09 - F.R. David - Words, 22.11 - Petula Clark - Downtown
22.27 - 6280.0 - Cruisin' Radio - 55545 - The Beach Boys - Dance, Dance, Dance, 22.30 - AC/DC - High Voltage, 22.49 - Siouxsie And The Banshees - Kiss Them For Me, 23.33 - CD
22.44 - 6290.0 - Radio KR1 - 43443 - MFSB - Love Is The Message, 23.21 - Trisha Yearwood - If I Ain't Got You, 23.36 - The Blues Brothers - Flip, Flop & Fly

13.07.2021

20.10 - 6285.0 - Radio KR1 - 35333 - Uriah Heep - Return To Fantasy, 20.14 - Guns'n'Roses - Paradise City
20.45 - 6300.5 - UNID - 43333 - Some music, drifting upwards carrier, modulation is not good, 21.02 - CD on 6301.3 kHz

14.07.2021

19.11 - 6275.0 - Radio Fox 48 (tent.) - 35232 - Jive Bunny - That's What I Like
20.25 - 5140.0 - Charleston Radio Int'l - 45243 - Retro music
20.28 - 4870.0 - Mystery Radio 21 - 43243-55344 - Then Comes Silence - Strangers, 20.29 - Boy Harsher - Pain, 20.36 - SYZYGYX - Hold Tight, 20.44 - ID, email address announcement
21.23 - 6285.0 - Radio KR1 - 43243 - Some slow music, 21.37 - Fiddle Folk Family - Was Wollen Wir Trinken, 21.41 - ID, 21.44 - ABBA - Voulez-Vous
21.48 - 4950.0 - Radio Deltracks (tent.) - 34232 - Some music under heavy QRN, slight heterodyne hum  from Radio Nacional (Angola) (tent.) on 4949.7 kHz, periodical QRM from CIS-12 signal on 4944 kHz

16.07.2021

18.31 - 6244.0 - Radio Aristona - 45243 - Oompie Koerier - Oh Lief Piratenkind, 18.33 - CD
19.20 - 6944.9 - Zeppelin Radio (tent.) - 35333 - Some jazz music, female voice singer
19.55 - 6270.0 - Studio 52 (tent.) - 25332 - Some music on peaks
20.39 - 6397.0 - De Witte Reus - 153x1-25322 - Some music on peaks, 20.49 - CD
21.34 - 6985.0 - The Vault - 44343 - Republica - Drop Dead Gorgeous, 21.37 - David Bowie - Cat People, 21.43 - ID, 21.44 - Narada Michael Walden - I Shoulda Loved Ya, some CW QRM at times
21.45 - 4870.0 - Mystery Radio 21 - 55344 - Frankie Goes To Hollywood - The Power Of Love, 21.48 - ID, 21.49 - Bat For Lashes - Daniel, 21.57 - Oskarova Fobija - Beli Dekolte
21.59 - 5140.0 - Charleston Radio Int'l - 45243 - ID, 22.00 - The Yankee Ten Orchestra - How Could Red Riding Hood? 22.07 - Leslie Sarony - More Rhymes

17.07.2021

00.28 - 4955.0 - Radio Deltracks (tent.) - 43333 - Cilla Black - Step Inside Love, 00.30 - Shakin' Stevens - A Love Worth Waiting For
20.43 - 12085U - Mix Radio Int'l - 45433 - Wolfgang Haffner - Warm Breeze, 20.48 - Ronny Jordan - Tinseltown, 20.52 - Chris Geith - Playa del Sol, 20.55 - The Rippingtons - Sapphire Island, then - QSY to 12075 kHz USB
21.03 - 6285.0 - Voice of The Netherlands (tent.) - 43443 - Laura Branigan - Self Control, 21.14 - Evelyn Thomas - High Energy, 21.18 - The Romantics - What I Like About You
21.04 - 6270.0 - Mike Radio - 45444 - Space Art - Onyx, 21.06 - CD
21.12 - 6334.0 - Radio Joey - 45333-55444 - Ronnie & The Ronnies - Beestjes, 21.20 - Rita Hovink - Laat Me Alleen
21.28 - 12075U - Mix Radio Int'l - 45444 - Instrumental jazz music
21.33 - 6295.0 - Cruisin' Radio - 53444 - The Five Americans - Western Union, 21.36 - ID, 21.37 - The Passions - I'm In Love With A German Film Star, 21.40 - The American Breed - Bend Me, Shape Me
21.41 - 6985.0 - The Vault - 45444 - Blancmange - Don't Tell Me, 21.48 - Art Of Noise - Peter Gunn, 21.54 - The Human League - Love Action
21.58 - 3920.0 - Radio WDR - 45343 - John Parr - St. Elmo's Fire, 22.00 - speech to listeners, 22.01 - CD
22.03 - 5140.0 - Charleston Radio Int'l - 45333 - Abe Lyman's Orchestra - Let's Talk About My Sweetie, 22.05 - Bebe Daniels - Give A Little Whistle, 22.08 - Muzzy Marcellino & Candy Candido & Ted Fio Rito Orchestra - The Object Of My Affection
22.35 - 4870.0 - Mystery Radio 21 - 55344 - Pen Friend - Avenew, 22.59 - Gereon - Monorail
22.52 - 6285.0 - Radio KR1 - 34433-44444 - ABBA - The Day Before You Came, 22.56 - ABBA - Voulez-Vous

18.07.2021

20.18 - 6270.0 - UNID - 45243 - George Jones - I Stayed Long Enough, 20.20 - Stan Ridgway - Camouflage, 20.53 - CD
20.36 - 6295.0 - Reflections Europe - 43343 - Sermon in English
20.40 - 12255.0 - Reflections Europe (tent.) - 154x1-25422 - Some speech by male voice
21.28 - 5140.0 - Charleston Radio Int'l - 45233 - Savoy Havana Band - Everybody Stomp
23.30 - 6280.0 - Panda Radio (tent.) - 24422-34422 - Some music on peaks

19.07.2021

19.53 - 6285.0 - Radio KR1 - 43443-44444 - Adagio For Strings, Op. 11, 19.55 - Nocturne In E-Flat Major, Op. 9 No. 2, 21.27 - Richard Clayderman - Ballade Pour Adeline, 21.46 - QSY to 6280 kHz by reason of strong OTHR QRM
20.10 - 5805.0 - UNID - 45444 - Soft Cell - Tainted Love, 20.12 - Michael Jackson - Thriller, 20.14 - New Order - Blue Monday, 20.21 - CD
21.04 - 5140.0 - Charleston Radio Int'l - 45243 - Harry Richman - I Just Roll Along, 21.07 - Eddie Lang - Good Little, Bad Little You
21.19 - 5880.0 - Radio Rock Revolution (tent.) - 25232-35232 - Manfred Mann's Earth Band - Spirits In The Night
21.33 - 6985.0 - The Vault (tent.) - x14x1 - Some music under strong OTHR QRM (audible only during short pauses in QRM)
21.48 - 6280.0 - Radio KR1 - 43333 - Classical music, 21.54 - Concerto For 2 Mandolini In G (Andante 1)

20.07.2021

20.20 - 6280.0 - Radio Ronalisa - 25322-35333 - Some music and speech on peaks, 20.34 - Roy Orbison - You Got It, 20.59 - The Cure - A Forest, 21.04 - Simple Minds - Alive And Kicking
20.27 - 6397.0 - De Wittereus - 153x1-25322 - Music on peaks, 20.52 - CD
20.47 - 6270.0 - Panda Radio - 143x1-24432 - Weak music on peaks, 20.57 - CD

21.07.2021

18.47 - 6280.0 - Sluwe Vos Radio - 43333 - The Motors - Airport, 18.51 - Flash & The Pan - Hey St. Peter, 18.56 - Jona Lewie - You'll Always Find Me In The Kitchen, 18.57 - clear ID, 19.18 - CD

22 July 2021

eQSL from Radio Gaar

 Just got this stylish and detailed eQSL from Radio Gaar (relay via Radio Piepzender). The frequency of 6185 kHz is much more suitable for my location, because there is no so much local QRM from neighbours, as on 75/76 meter band. Thank you very much, Martin!

19 July 2021

Five Dutch FM pirates received in Kyiv for 15 minutes

 New sporadic hop from The Netherlands and The United Kingdom on CCIR FM band on 3rd of July 2021 has brought new interesting catches, such as Radio Continu (new one for me, very similar to the Dutch amateur stations by its musical playlist). But the most interesting are the Dutch pirate radio transmitters which were highly active that Saturday evening.

The propagation was not very stable that day: fair signals with frequent fade-outs and rare fade-ins arrived mostly from the central and eastern part of The Netherlands alternating with numerous usual BBC Radio 2 and BBC Radio 3 giants on 88.1, 88.3, 88.6, 88.8, 89.1, 89.5, 89.7, 90.1, 90.5, 90.8, 91.3, 91.9 and 92.3 MHz. Also a couple of Dutch and Frisian stations from the northern part of the country were audible now and then (e.g. Grunn FM, Omrop Fryslân, etc.), but no any Belgian broadcaster was heard. In some cases, signals were available for only several minutes or even for tens of seconds. I have done SDR recording 15 minutes long without any hope for interesting results.

And here what I found after detailed analysis of my SDR recording:

1. Kampers Piraten Team (tent.) - 87.5 MHz - 16.40 - 16.44 UTC - SNR up to 25 dB - RDS PI: BE35, PS contained "VOOR REACTIES":


Nice retro repertoire, typical for the Dutch unlicensed broadcasters, unfortunately no identifications were heard during the short period of reception.

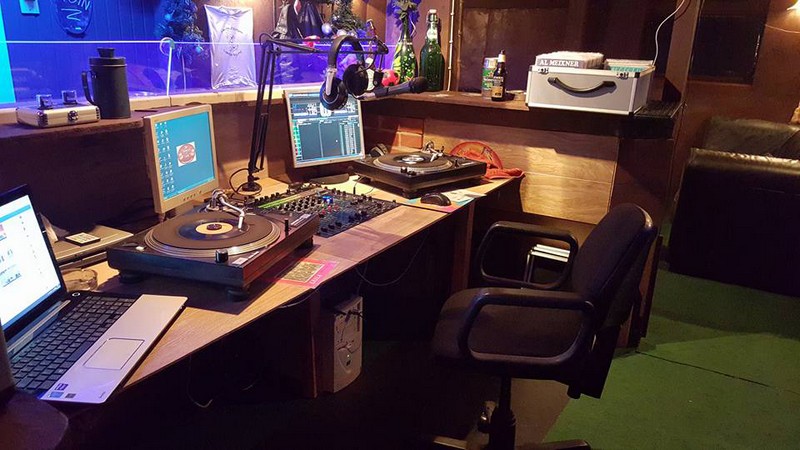

2. Sirocco en Lawaai Papagaai - 88.8 MHz - 16.28 - 16.43 UTC - SNR up to 26 dB - RDS PI: 884A, PS and radiotext contained: "Sirocco / Lawaai", etc.:


QRM from co-channel BBC Radio 2 at times. Quite active pirate station, already received here on 26th on June 2021.

3. Zuidwester - 90.1 MHz - 16.28 - 16.43 UTC - SNR up to 27 dB - RDS PI: 8FFF, PS contained "-- -t--d:"


Heavy interference from co-channel BBC Radio 2. Similar RDS settings can be found on this YouTube video clip by DX Hunter Z/W Drenthe. "-- -t--d:" appears to be "de tijd:"

4. M en M Formatie (tent.) - 91.6 MHz - 16.28 - 16.43 UTC - SNR up to 29 dB - no RDS was decoded:


Unfortunately, no RDS data was detecoded at all, as stated above, but operator's voice can be heard on my recording. Many thanks to Henri for the help with this one!

5. De Baltazar en Lady - 92.1 MHz - 16.35 - 16.41 UTC - SNR up to 29 dB - RDS PI: FFF6, radiotext: "Baltazarenladyalmelo. RADIOSTREA":


Dutch oldies and more contemporary music. Only a short burst, when the station's signal reached proper level, but that was enough to decode important ID information.


It would be possible to receive even more Dutch pirates on the frequencies above 92.3 MHz indeed, however it is more difficult in Kyiv, because that frequency range is densely populated by local official FM broadcasters. Anyway, it's worth a try one of the next times.

And again, many thanks to Henri, who helped me to identify some of the listed stations. I'm very happy with such a fruitful Es hop! More stations - more experience in identifying Dutch free FM'ers.


RX: Airspy Mini SDR
ANT: 80 mb dipole

16 July 2021

WRMI relays Radio Merlin International

 Texas Radio Shortwave is teaming with WRMI to present an hour of music from Radio Merlin.

The program will be broadcast on 5800 kHz, Friday night, July 16, at 10 p.m. ET (0200 GMT on July 17).

Radio Merlin went on air in 1990 after changing its name from Radio Galaxy. Radio Galaxy was an FM pirate that moved to shortwave in 1989 after authorities raided it many times. They changed their name to Merlin as there was already a station called Radio Galaxy. From 1990 until 1994, the transmitter site was an abandoned electrical substation. After being raided many times, the station closed down for a few years and returned to broadcasting in 2004 with a new transmitter location. Radio Merlin is regularly heard throughout Europe with a transmitter power of about 20 Watts.

Reception reports must be sent directly to the station because Texas radio shortwave won’t issue an eQSL for the broadcast. The station’s address is radiomerlin/at/bluesky.co.uk (😕??? may be at blueyonder.co.uk? - UDXB).

This is the third in a series of weekly WRMI relays of European pirates and low-power licensed broadcasters, many of which haven’t been heard in North America for many years — if ever. The rest of the series looks like this:

July 24 - Radio Monique International, The Netherlands
July 31 - CoolAm Radio, The Netherlands
August 7 - Cupid Radio, The Netherlands
August 14 - Free Radio Service-Holland, The Netherlands
August 21 - Atlantic 2000 International, France
August 28 - Radio Delta International, The Netherlands.

Texas Radio Shortwave sails in international waters off the South Texas coast. Its programs are regularly broadcast in North America and Europe.

Source: Texas Radio Shortwave Facebook page

12 July 2021

eQSL from Cruisin' Radio

 Thanks to the station's owner for the nice eQSL confirming reception of Cruisin' Radio on 6280 kHz via unidentified relay!


Station's website: http://cruisinradio.net/

11 July 2021

eQSL from Radio (Jong) Europa

 Thanks to John for the non-detailed eQSL for reception of the Dutch station Radio Europa on 5939.9 kHz on 4th of July 2021 via new registered shortwave transmitter in Alphen aan den Rijn (AAR)!

07 July 2021

Es catches 31.05.2021

08:36 87.80 MHz TUR Best FM Adana-Alihocali 25 kW 1540 km 163 °
09:29 70.64 MHz 404 Radio Rossii Krasnye Baki 17 kW 1220 km 46 °
09:36 69.47 MHz 404 Radio Peterburg (tent.) Sankt-Peterburg/Olgino 20 kW 1070 km 359 °
09:39 66.30 MHz 404 Radio Rossii Sankt-Peterburg/Olgino 20 kW 1070 km 359 °
09:43 91.50 MHz FIN YleX Posio 30 kW 1750 km 356 °
10:04 91.40 MHz FIN YLE Radio Yksi Kruunupyy 60 kW 1540 km 347 °
10:08 90.60 MHz S SR P1 Älvsbyn (tent.) 60 kW 1780 km 346 °
10:14 90.10 MHz FIN YleX Lapua/Simpsiö-Mastontie (tent.) 60 kW 1470 km 345 °
10:15 90.70 MHz FIN? UNID (RDS PI: 7935) ? ? kW ???? km ??? °
10:16 87.60 MHz FIN Me Naiset Radio Lapua/Simpsiö-Mastontie 1 kW 1470 km 345 °
10:16 88.20 MHz FIN YLE Radio Yksi Lapua/Simpsiö-Mastontie 60 kW 1470 km 345 °
10:16 88.80 MHz FIN YLE Puhe Kruunupyy 30 kW 1540 km 347 °
10:16 89.30 MHz FIN Radio Rock Orivesi/Oriahde-Notkotie 1 kW 1310 km 346 °
10:16 89.90 MHz FIN YLE Radio Yksi Jyväskylä 30 kW 1350 km 349 °
10:17 88.70 MHz EGY Radio Masr Al-Qahira (tent.) 10 kW 2260 km 178 °
10:18 90.00 MHz FIN NRJ Energy Tampere/Näsinneula 0.2 kW 1300 km 344 °
10:19 90.60 MHz 404 Kostroma FM Kostroma 3 kW 1070 km 36 °
10:19 91.00 MHz 404 Radio Vanya Kostroma 3 kW 1070 km 36 °
10:19 91.20 MHz 404 Uyezdnoye Radio Arkhangelsk 3 kW 1680 km 17 °
10:19 91.60 MHz FIN Radio SuomiPOP Tampere/Näsinneula 0.2 kW 1300 km 344 °
10:20 90.60 MHz S SR P1 Älvsbyn (tent.) 60 kW 1780 km 346 °
10:21 90.50 MHz FIN Järviradio Pylkönmäki/Saarijärvi 5 kW 1400 km 348 °
10:21 90.70 MHz FIN YLE Radio Yksi Tampere/Teisko (tent.) 60 kW 1320 km 345 °
10:23 90.30 MHz FIN Radio 957 Parkano 3 kW 1370 km 344 °
10:24 88.10 MHz FIN Radio Classic (tent.) Hämeenlinna/Ahvenisto 1 kW 1230 km 345 °
10:24 88.90 MHz FIN Radio City (Hämeenlinna) Hämeenlinna/Ahvenisto 2 kW 1240 km 345 °
10:24 89.40 MHz S SR P1 Arvidsjaur (tent.) 60 kW 1810 km 343 °
10:24 89.90 MHz FIN Järviradio Janakkala/Tietty 2 kW 1220 km 345 °
10:25 89.10 MHz FIN HitMix Ähtäri 1 kW 1400 km 346 °
10:25 89.80 MHz FIN HitMix Kokkola/Patamäki 0.1 kW 1560 km 347 °
10:25 90.70 MHz FIN YLE Radio Suomi Evijärvi 3 kW 1510 km 346 °
10:29 87.80 MHz EGY Mix FM 87.8 Al-Qahira 10 kW 2260 km 178 °
10:30 87.60 MHz FIN Radio Nostalgia Lahti/Kolavankangas 1 kW 1210 km 348 °
10:31 88.20 MHz FIN Ysäri (tent.) Lahti/Kolavankangas 0.2 kW 1210 km 348 °
10:32 91.30 MHz S SR P1 Kalix (tent.) 60 kW 1780 km 350 °
10:33 90.10 MHz S Star FM (Luleå) Luleå 2.5 kW 1760 km 347 °
10:34 88.80 MHz FIN NRJ Energy Jämsä/Matkosvuori (tent.) 1 kW 1320 km 348 °
10:34 91.10 MHz FIN YleX Pihtipudas/Ilosvuori-Viitasaarentie 50 kW 1460 km 350 °
10:37 88.20 MHz EGY Radio Hits Al-Qahira (tent.) 10 kW 2260 km 178 °
10:37 92.20 MHz FIN YLE Puhe (tent.) Perho/Limakonkallio 3 kW 1470 km 348 °
10:38 92.10 MHz EGY NRJ Al-Qahira (tent.) 10 kW 2260 km 178 °
10:41 91.40 MHz FIN YLE Radio Yksi Kruunupyy 60 kW 1540 km 347 °
10:43 87.60 MHz S SR P1 ? ? kW ???? km ??? °
10:54 88.10 MHz FIN Radio Classic Hämeenlinna-Tavastehus 1 kW 1230 km 345 °
10:54 88.30 MHz S SR P1 (tent.) Gällivare (tent.) 60 kW 1940 km 347 °
10:54 90.70 MHz FIN YLE Radio Suomi Evijärvi 3 kW 1510 km 346 °
10:54 91.90 MHz FIN YLE Radio Yksi Ähtäri 3 kW 1400 km 346 °
10:56 87.80 MHz FIN YLE Radio Yksi ? ? kW ???? km ??? °
10:56 91.50 MHz FIN Radio SUN (tent.) Mänttä-Vilppula/Mäntänvuori 1 kW 1340 km 347 °

All the stations were identified by ID jingles, RDS, playlists, podcasts, parallel frequencies or parallel web streams. Power values are ERP, distances are approximate.

RX: Airspy Mini SDR
ANT: 80 mb dipole

06 July 2021

Es catches 26.05.2021

12:15 88.70 MHz SYR SRTV Sawt al-Shabab (tent.) Damascus/Jabal Qasyun 50 kW 1930 km 164 °
12:15 89.00 MHz IRN IRIB Radio Javan ? ? kW ???? km ??? °
12:15 89.40 MHz TUR UNID (PI: 0100, PS: ----NE--) ? ? kW ???? km ??? °
12:15 90.00 MHz SYR Souriana FM Alnabee Saleh 150 kW 1780 km 162 °
12:15 91.20 MHz TUR TRT FM Izmir-Bayrakli (tent.) 100 kW 1340 km 192 °
12:16 87.50 MHz TUR Pal Nostalji Adana-Alihocali 50 kW 1540 km 163 °
12:17 89.60 MHz SYR Ninar FM Damascus/Jabal Qasyun (tent.) 25 kW 1930 km 164 °
12:21 89.90 MHz SYR SRTV 1 Dimashk (tent.) ? ? kW ??? km ??? °
12:21 91.10 MHz IRQ Radio Nawa Kurdish (tent.) Zakho ? kW 1770 km 142 °
12:21 91.50 MHz IRQ Radyo Duhok (tent.) Zakho (tent.) ? kW 1760 km 142 °
12:22 89.10 MHz JOR BBC WS Arabic (tent.) Ajlun 100 kW 2050 km 166 °
12:22 89.40 MHz SYR Dengê Rojava Al-Malkeih 10 kW 1750 km 143 °
12:22 89.40 MHz TUR Türkiye Polis Radyosu Siirt ? kW 1650 km 142 °
12:24 92.00 MHz TUR TRT Radyo 1 Gaziantep-Sehitkamil/Büyüksofdagi 30 kW 1560 km 158 °
12:26 88.00 MHz TUR Diyanet Radyo Diyarbakir/Talay Tepe ? kW 1580 km 147 °
12:27 88.90 MHz IRQ Radyo Duhok (tent.) ? ? kW ???? km ??? °

All the stations were identified by ID jingles, RDS, playlists, podcasts, parallel frequencies or parallel web streams. Power values are ERP, distances are approximate.

RX: Airspy Mini SDR
ANT: 80 mb dipole

04 July 2021

Three pirate FM stations were received in Ukraine during sporadic propagation from the Netherlands

 The sporadic propagation on 26th of June 2021 at 16.00 - 17.00 UTC time slot has been quite fruitful in Kyiv: many stations from the Netherlands, Belgium and United Kingdom, but the most interesting are the pirate (unlicensed) broadcasters which were also active that moment, because Saturday evening is one of the most popular broadcast time among them.

Here what I was able to receive and identify with my Airspy Mini SDR and 80 mb inverted Vee dipole antenna (as you can see, some interesting Es catches are sometimes available even without special directional VHF antennas, such as "Yagis" or log-periodic ones, thanks to the high output power levels used by the Dutch FM pirates):

1. Goud Van Oud - 87.5 MHz - 16.18 - 16.30 UTC - RDS PI: 678F, PS contained: "GOUD / VAN OUD":


Unfortunately, I have not found any iformation about this station in Internet (https://radiogoudvanoud.nl/ is a different one, I guess), except for a WhatsApp number: 06 5555 5992.

2. Sirocco en Lawaai Papagaai - 88.8 MHz - 16.16 - 16.20 UTC - RDS PI: 884A, PS and radiotext contained "Sirocco / Lawaai / Papagaai":


Typical Dutch "pirate" music repertoire. This station was the most easy to identify, thanks to the informative RDS.


3. UNID (possibly Tik Van De Meule (T.V.D.M.)?) - 90.1 MHz - 16.14 - 16.18 UTC - RDS PI: 3276, PS contained: "VOOR / REACTIES" (tent.) phrase. On some YouTube clips, Tik Van De Meule has this phrase in its RDS PS, however, I don't know if it is a common phrase for many pirates or it is rather typical only for Tik Van De Meule. Also Tik Van De Meule was mentioned in pirate streams list for 90.1 MHz one of the next days:


Hungarian DXer EnJoe from Békés has also received the same station on 90.1 MHz that day, PS logged by him is: "GI??ERFM". Any ideas what it could be?

Any help with the third one or corrections are appreciated!

01 July 2021

QSL from Radio Waves International

 QSL from Radio Waves International (via Channel 292). Many thanks to Peter Hills and Philippe for the detailed QSL-letter and many souvenirs.
